Neolam 1600 Max

The NEOLAM 1600 Max is an industrial roll to roll laminator & cutting machine. Ultra-high lamination speed of 50m/min.

All Products Back

Product Specification Brochure

Product Description

The NEOLAM 1600 MAX represents the MEFU latest advancement in industrial roll to roll laminator and cutting technology. Equipped with a fully functional MEFU intelligent system, it delivers unmatched performance and versatility for a wide range of applications. Its intelligent features include real-time temperature and speed monitoring, lamination record tracking, swing-in & swing-out air shafts, and a robust integrated frame, making it one of the most powerful and reliable machines in its class.

Enquire Now

Features

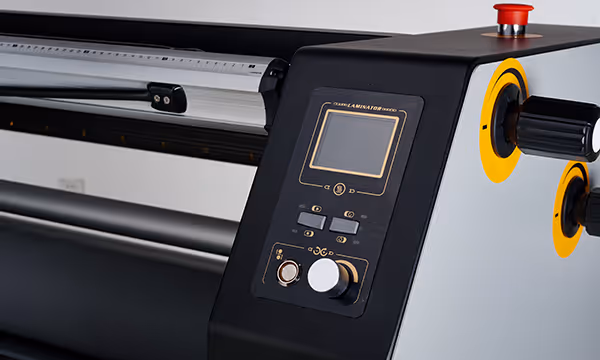

Smart System —— Front Panel

NEOLAM 1600 MAX Front panel control

Speed, temp, and lamination statistic: easy to check figures of set temp, real temp, and button speed, as well as find your lamination records in 30 days
Auto Slow-down and Stop when medias come to an end
Alarming for stop, safety protection, and overloaded media
Dual foot-pedal (one for up and down roller, the other for lamination)
Date and time display

‍

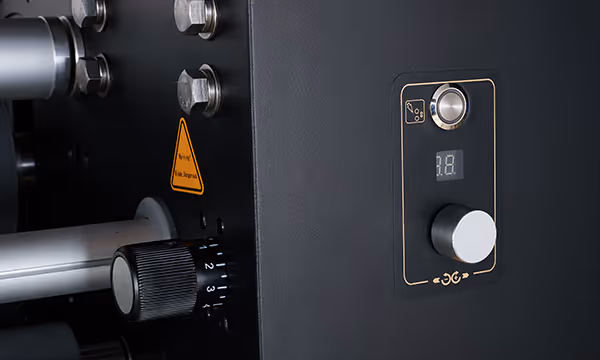

Smart System —— Rear Panel

NEOLAM 1600 MAX Rear panel

Active by button on rear display, more precise and have good finishes

Speed statistics, show button speed, which is convenient to adjust machine speed
Cutting active by button, easy to use

‍

Pneumatic rear cutting

NEOLAM 1600 MAX detail compartment

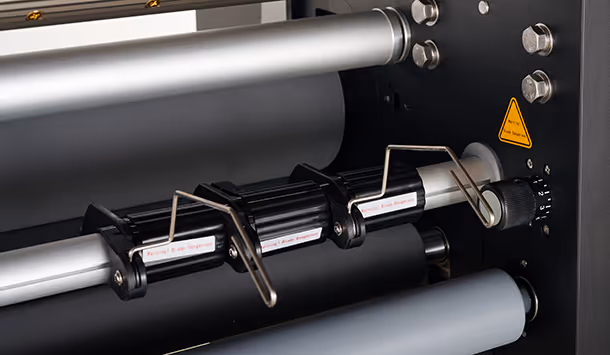

Vertical cutting correction
Auto track and correction during laminating and cutting

‍

Swing in & out air shafts

Swing in and out air shafts, easy for heavy rolls loading and unloading
Air tension button for locked shafts and air-filled, convenient to use

Benefits

• 2 winder/1 rewinder with Swing in & out air shafts could easily load and unload your materials for fast and heavy duty application.

• Front and Rear panels are more convenient for operation. Speed, Temperature, Lamination Records all show in Front panel.

• Strong and integrated frame is more friendly for assemble, 130mm glue-free silicon rollers ensures faster and accurate running under 50m/min Speed.

• Pneumatic rear cutting bar can easily active to cutting the edges.Fully positions adjustable cutting holders with tungsten steel blades can cut most materials with a lifetime that over 15000m.

Specification

Maximum Laminate Width‍

1630mm/ 64"

‍

Maximum Laminate Thickness‍

28mm/ 1.1"

‍

Maximum Speed‍

50m/ min

‍

LED Panel

Temp, Speed, Lamination Records

‍

Maximum Temperature

‍

Foot Pedal

Single foot pedal

‍

Control Panel

Front and rear

‍
