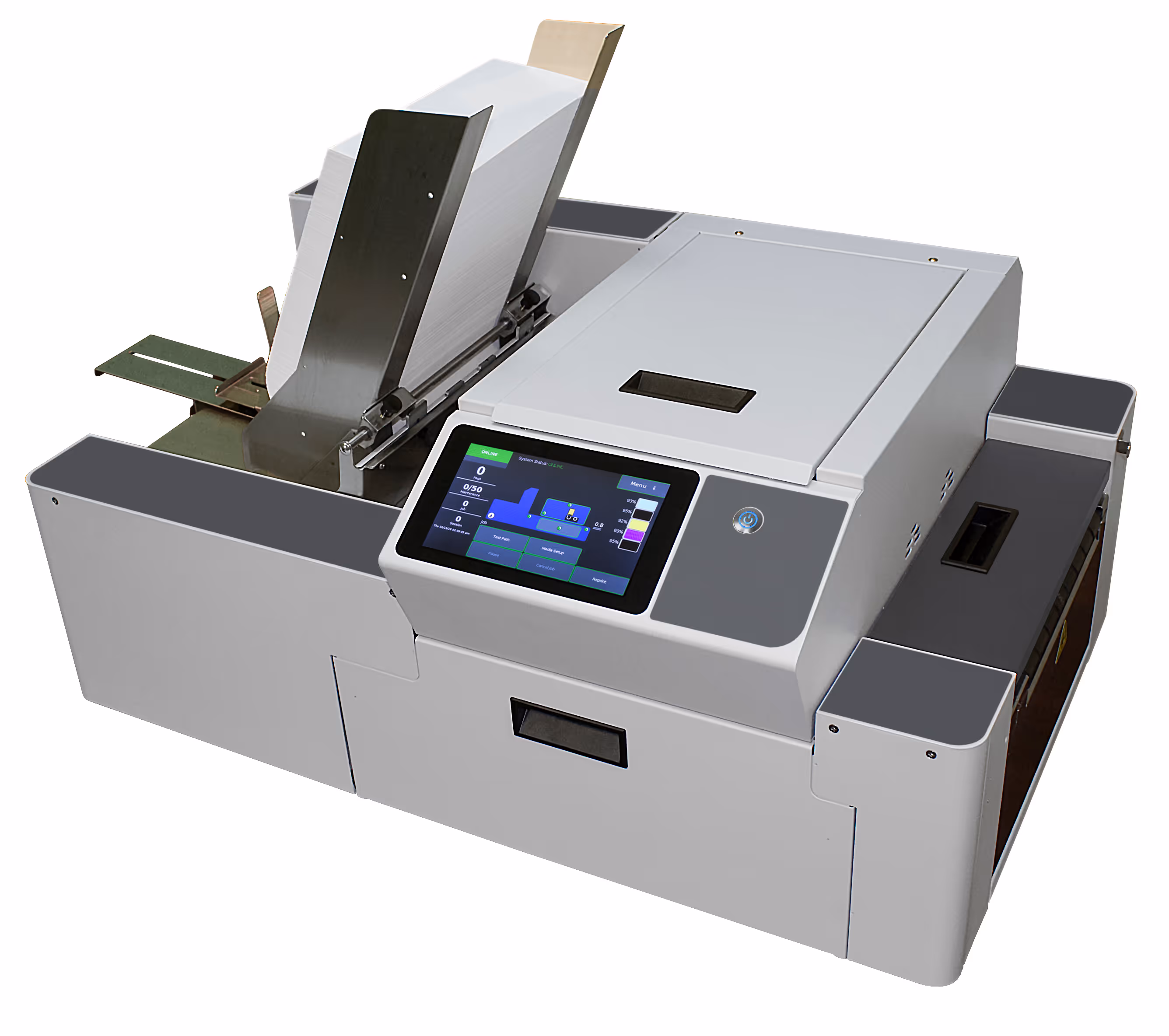

MACH 6 Digital Printer

A breakthrough in digital colour printing for mailing and packaging.

All Products Back

Product Specification Brochure

Product Description

The MACH 6 printer leverages Memjet® inkjet technology to print on applications beyond envelopes and paper, including various materials up to 3/8” thick. It dramatically improves direct mail marketing and packaging while maintaining an extremely low total cost of ownership.

The MACH 6 helps commercial printers expand their offerings for affordable short run color printing jobs while increasing their profitability and productivity.

Enquire Now

Quick facts

• High-resolution 7” colour touch screen display with integrated control center.

• Prints brilliant full colour at 1600 x 1600 dpi

• Operates at speeds up to 9,400 #10 envelopes per hour

• Top-loading feeder with the capacity for 575 #10 envelopes

• Handles media up to 3/8” thick

• Supports material up to 10.5” wide x 17” long

• Long-lasting print head with automated cleaning and capping system maintains print quality

• Stored jobs feature holds 60+ GB of print jobs that can be called up at any time

• Easy front access, high-capacity ink tanks

• Low cost per piece and cost of ownership for greater profitability

Specifications

Print resolution Up to 1600 x 1600 dpi

Print speed (normal print quality burst speeds) Over Speed OFF Up to 3600 pages/hr

Print area Up to 22 cm x 102 cm

Material size min (W x L) 8 cm x 10 cm

Material size max (W x L) 43 cm x 27 cm

Media thickness 10mm

Ink capacity 250 ml – cyan, yellow, magenta 500 ml – black

Display 7" colour touch screen

Memjet® technology Dye-based ink chemistry

Digital firmware updates via PC USB 2.0 or Ethernet

‍

Electronic thickness control via touch screen
Fixed head with full page bleed print design
Automatic print head cleaning and capping station
Integrated fully automatic top load friction feeder
Pressure roller transport system with star rollers
TrueType® or PostScript® system fonts
UL Listed and CE Declared
Quadient® Bulk Mailer mColor Harlequin RIP
Electrical 100-240 VAC, 50/60 Hz, 2.5 A

‍

Consumables

Accessories & Related Products

The print head is the key

It has a single 8.77" bar that spans the width of the printing surface. Unlike conventional printers that must traverse back and forth across the page, this system has a fixed head that prints as the media continuously moves along at speeds up to eight times faster.

Capable of 7.5” per second at 1600 x 1600 dots per inch (dpi) print resolution, and 15” per second at 1600 x 800 dpi resolution, it offers production speeds of up to9,400 #10 envelopes per hour – compared to toner-based printers (e.g., LED and laser printers) that are limited to 3,000 pieces per hour at1200 dpi.

‍
