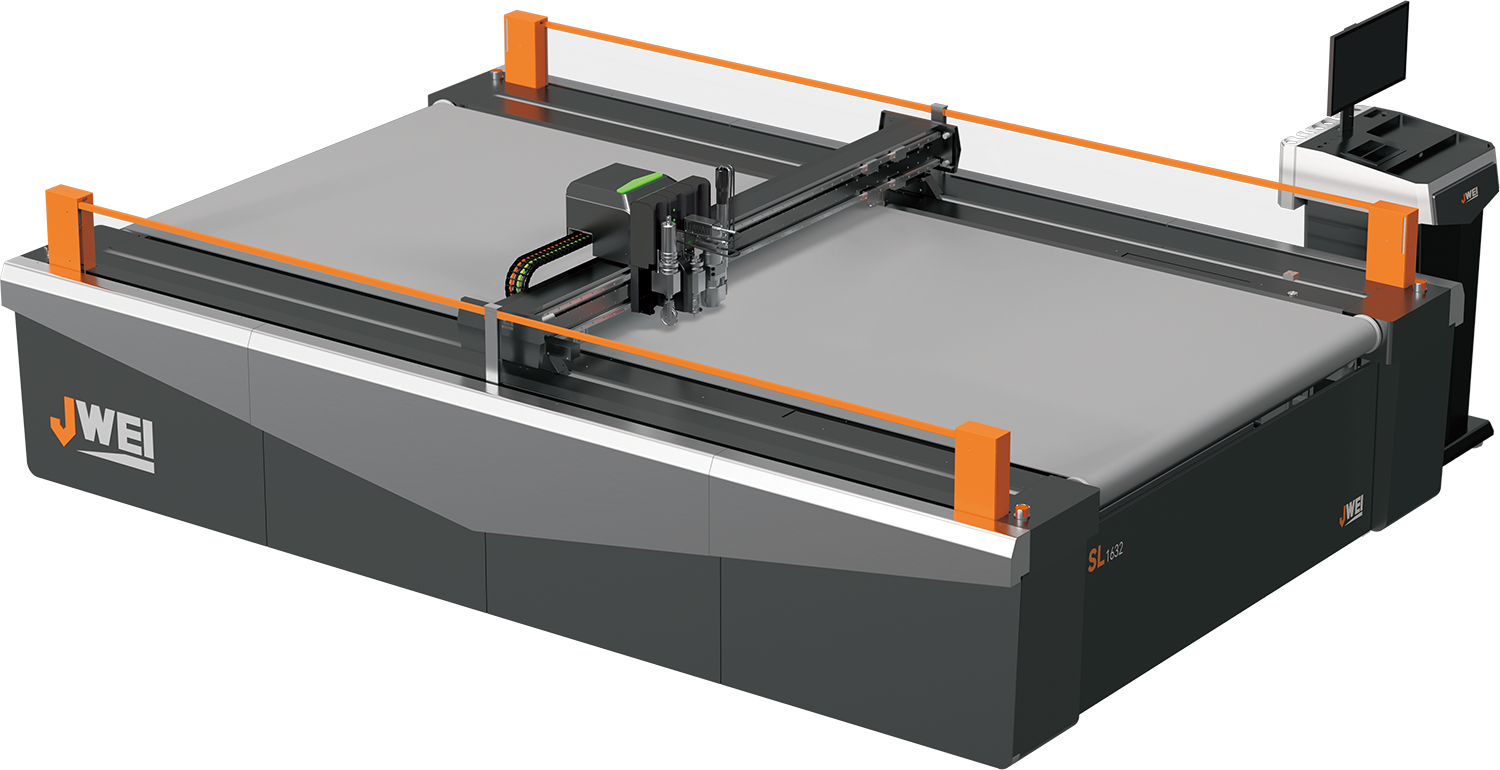

JWEI - SL1632 Flatbed Cutter

Designed to integrate seamlessly with 1.6 m wide digital printers, delivering a smooth, automated print-and-cut workflow with continuous high-speed productivity.

All Products Back

Product Specification Brochure

Product Description

The JWEI SL1632 Cutting System is an ultra-high-speed intelligent cutting solution designed for precision, productivity, and automation. Leveraging advanced magnetic levitation drive technology, it achieves cutting speeds of up to 3 m/s, while laser-guided positioning and intelligent motion control ensure exceptional accuracy, even for intricate details and complex cutting paths. With automatic tool changing and hands-free operation, the SL1632 minimises downtime and maximises efficiency for demanding production environments. Its seamless integration with digital printing workflows, robust construction, and versatile multi-tool capabilities make it an ideal solution for high-volume signmaking, packaging, display graphics, and industrial cutting applications.

Enquire Now

Features

‍Magnetic Levitation Drive & Linear Motors
Achieves speeds of up to 3 m/s while maintaining exceptional cutting accuracy across large-format applications.

‍

Advanced Motion Control Technology
Powered by the M7 control board, delivering precise cutting of intricate details, including micro-circles as small as 1 mm.

‍

High-Power Vacuum with Low-Noise Operation
Enhanced airflow technology provides strong material hold-down while operating at just 64 dB for a quieter workspace.

‍

Comprehensive Safety Protection
Features four layers of safety, including proximity slowdown, safety guards, infrared anti-collision sensors, and emergency stop systems.

‍

Laser-Guided Tool Alignment
Improves cutting accuracy by eliminating the inconsistencies associated with traditional manual calibration methods.

‍

Automatic Tool & Bit Changing
Automatically switches tools and milling bits to reduce downtime and maximise production efficiency.

‍

Application

Ideally suited for high-speed cutting of sheet and roll materials such as KT board, car wraps, PVC foam board, sticker ,acrylic and lightbox graphics. The SL1632 Cutting System is especially well-suited for businesses involved in advertising and the production of printed materials.

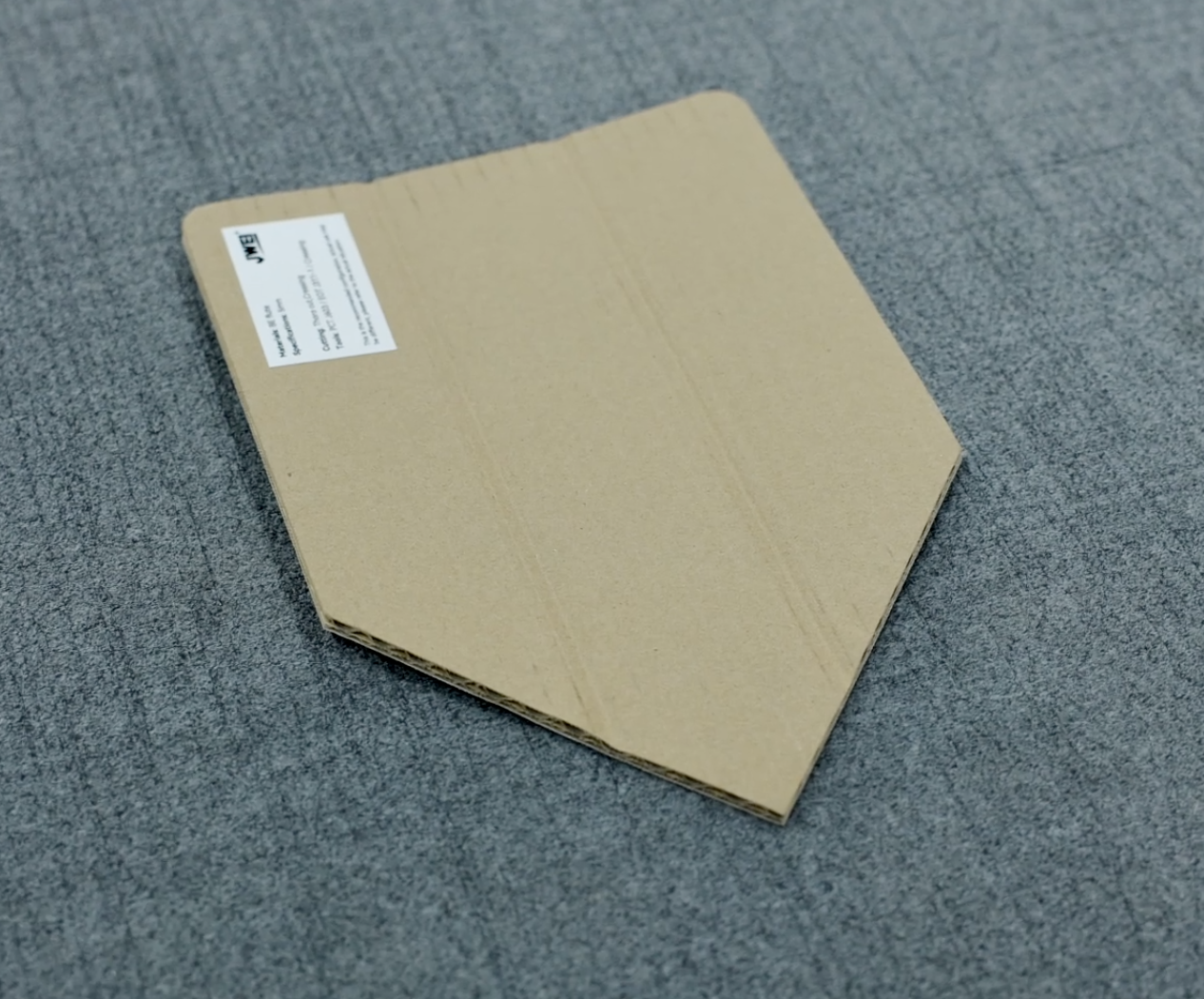

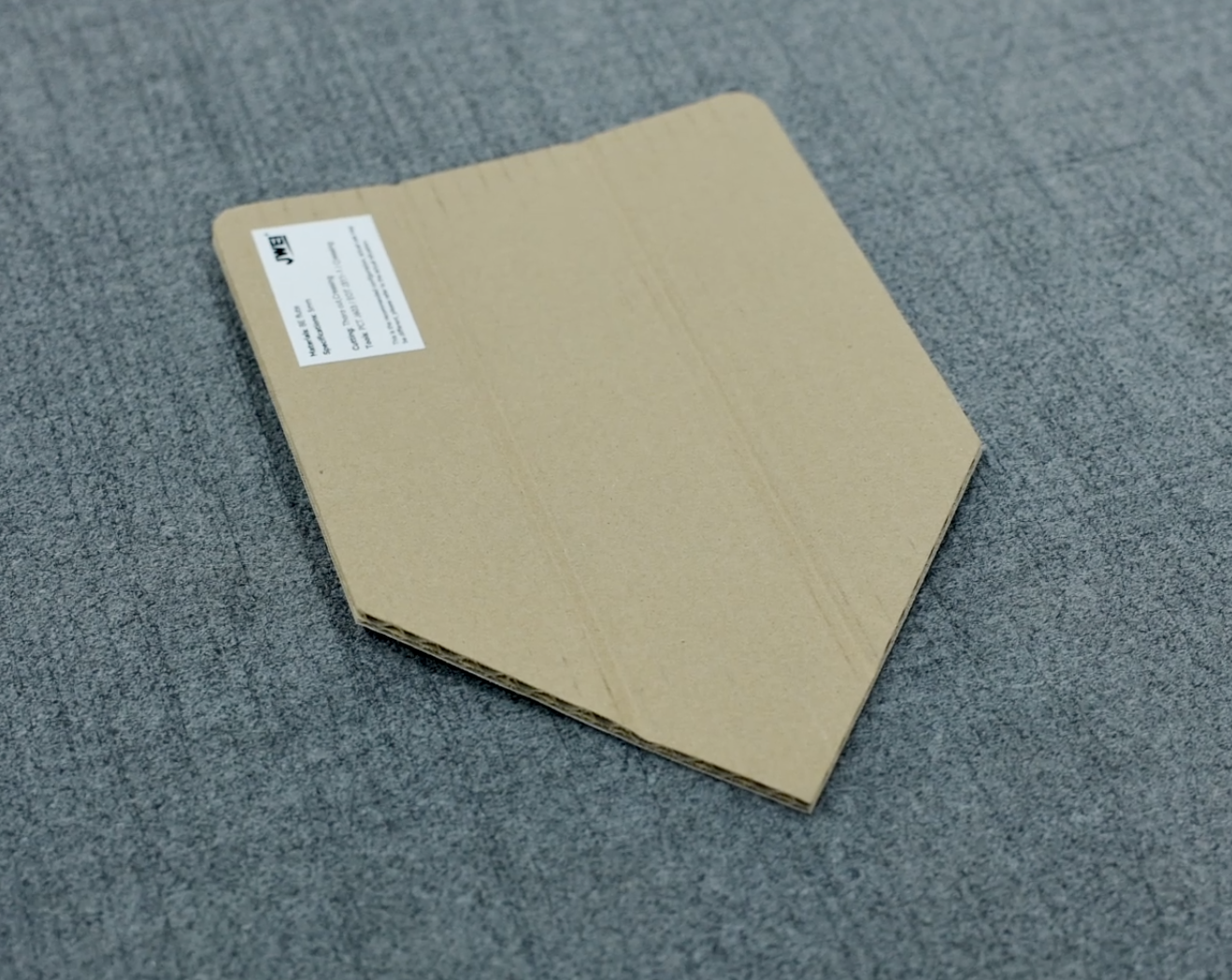

Corrugated board

KT board

MDF foam

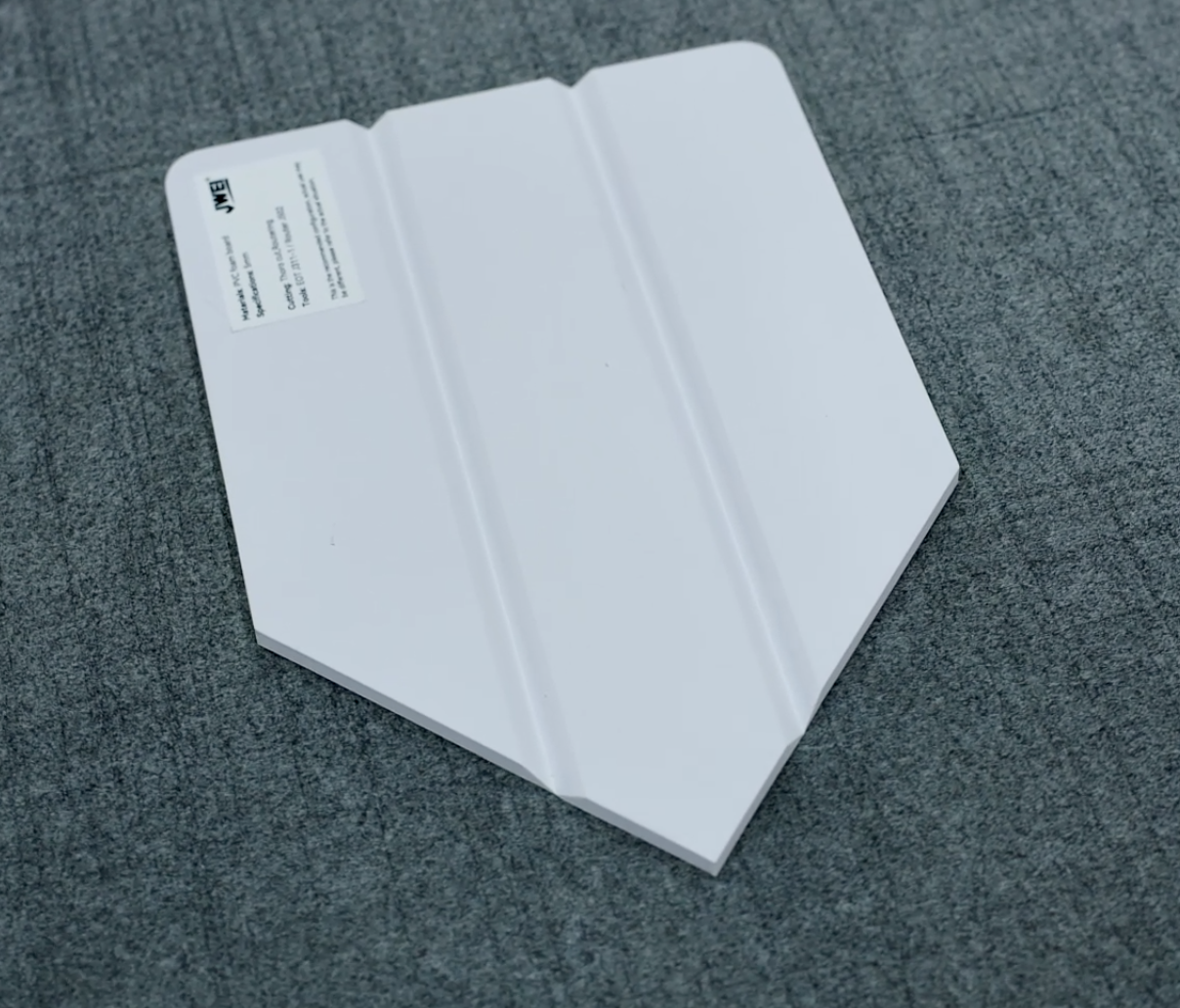

PVC foam board

Technical Specification

Multi-functional Tool Head

Multi-tool fixing holes, tool quick insert fixing, easy to replace cutting tools, plug and play, set cutting, creasing, drawing, router and othe rfunctions in one, optional ATC module.

Tools Electric oscillating tool, drag knife, rotary tool, router tool module, plotting tools etc.

‍

Max. Operating speed

3000mm/s

‍

Max. Cutting Thickness

50mm

*Repeat Precision ＜0.05mm

‍

Cutting Materials

ABS board, PVC board, space board, aluminum-plastic board, lamp sheet, back glue, PVC board, KT board, acrylic, magnetic sticker, self-adhesive etc.
