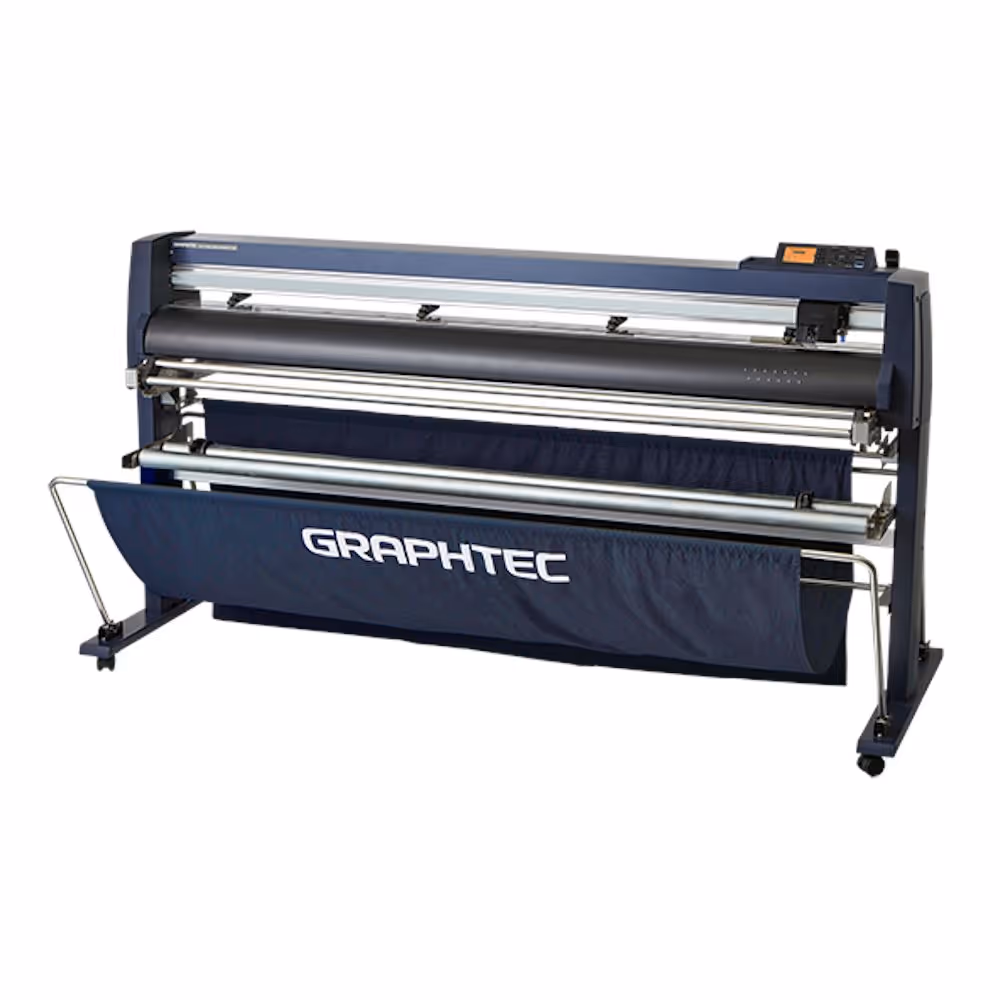

Graphtec FC9000 High-performance Cutting Plotter

The FC9000 series high-performance cutting plotter is an industry leader for sign makers, graphic artists, automotive aftermarket professionals, countertop installers and other related users.

All Products Back

Product Specification Brochure

Product Description

The FC9000 Series High-Performance Cutting Plotter sets the industry standard for professionals in signage, graphic design, automotive aftermarket, countertop installation, and related fields. Engineered for precision and speed, the FC9000 offers a maximum cutting speed of 58.5 inches per second, 4.0G acceleration, and adjustable cutting forces ranging from 20 to 600 grams. These capabilities make it ideal for processing a wide range of materials, including diamond-grade and high-intensity reflective films, sandblast-resistant rubber, automotive window and paint protection films, self-adhesive vinyl, Amberlith™, Rubylith™, and more.
Available in 75 cm, 100 cm, 140 cm, and 160 cm widths, the FC9000 series delivers unmatched versatility and performance for demanding production environments.

Enquire Now

Features

Data Link Function (Barcode Data Management/Continuous Cutting)
Continuous Cut (Data Link function)
Supports colored marks/ specialty media
Supports Adobe Illustrator "Crop Marks"
Segment Area Compensation (XV)
Expanded Cutting Area

Benefits

Data Link Function (Barcode Data Management/Continuous Cutting)

By reading the Graphtec original Barcode, FC9000 automatically detects its linked data from PC or USB flash memory. This function is available regardless of which printer or RIP software is used.

‍

Data output via USB flash memory without PC

When cutting data designed with Cutting Master 5 or Graphtec Studio 2 are saved to USB flash memory, it can be output directly to the cutting plotter by plugging in. This simplified work-flow enables users to operate without a computer.

‍

Continuous Cut (Data Link function)

Barcode data management allows cutting different data sequentially by detecting the “Start Mark” of the new Barcode. Sequential Print & Cut process with roll-media is now available.

‍

Reliable long-length tracking (Automatic Take-up Roller)

It supports long-length, 15m (50ft) (Operated with Graphtec specified media and conditions.) and makes possible to cut large signs/pops with stable paper carriage and high accurate cutting quality. In addition, if Automatic Take-up Roller as option is equipped to plotter, it becomes possible to automatically wind media and improve your work efficiency.

Automatic Take-up Roller (option)

The media is detected by the ultrasonic sensor and rolled up automatically.

Corresponding Models: FC9000-140/160
Guaranteed accuracy length: 20m (Under 1.2m per job)
Maximum diameter of winding roll: φ180mm

Winding conditions:
– End face of roll media and end face of paper tube should be aligned.
– Width of roll media should be the same as width of paper tube at winding side.
It cannot be winded if media is folded or overlapped inside the basket.

Specification

FC9000-75

Max. cutting area (W x L) (*1)

762mm × 50m

Cutting area of guaranteed accuracy (*1)

742mm × 15m

Mountable media width (*2)

Min. 50mm

Max. 920mm(36.2 inch)

Mountable roll media diameter

76 to 200mm

‍

FC9000-100

Max. cutting area (W x L) (*1)

1067mm × 50m

Cutting area of guaranteed accuracy (*1)

1047mm × 10m; 762mm × 15m

Mountable media width (*2)

Min. 50mm

Max. 1224mm (48.1 inch)

Mountable roll media diameter

76 to 200mm

‍

FC9000-140

Max. cutting area (W x L) (*1)

1372mm × 50m

Cutting area of guaranteed accuracy (*1)

1352mm × 10m; 894mm × 15m

Mountable media width (*2)

Min. 50mm

Max. 1529mm(60.1 inch)

Mountable roll media diameter

76 to 200mm

‍

FC9000-160

Max. cutting area (W x L) (*1)

1626mm × 50m

Cutting area of guaranteed accuracy (*1)

1607mm × 10m; 894mm × 15m

Mountable media width (*2)

Min. 50mm

Max. 1850mm (72.8 inch)

Mountable roll media diameter

76 to 200mm
