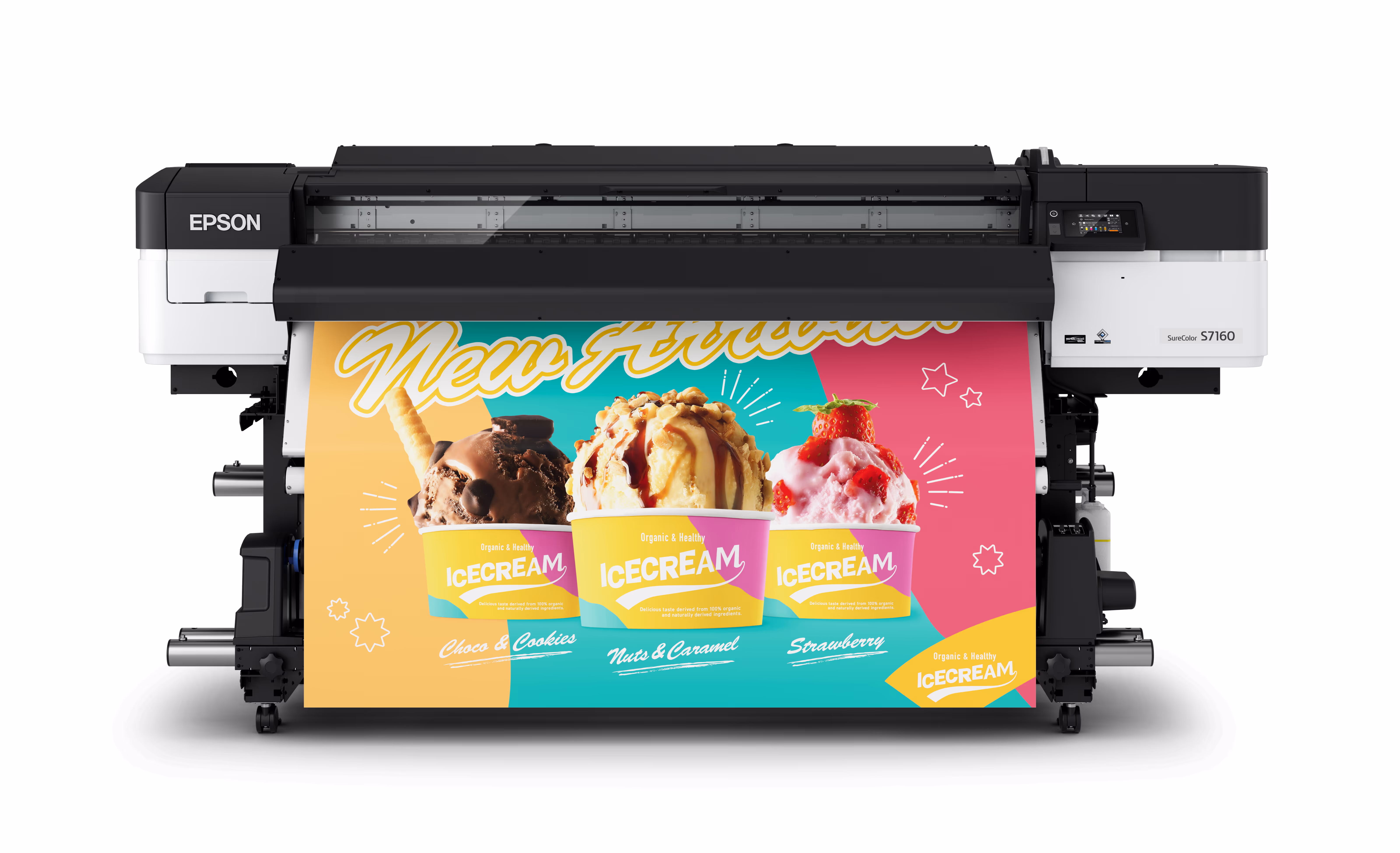

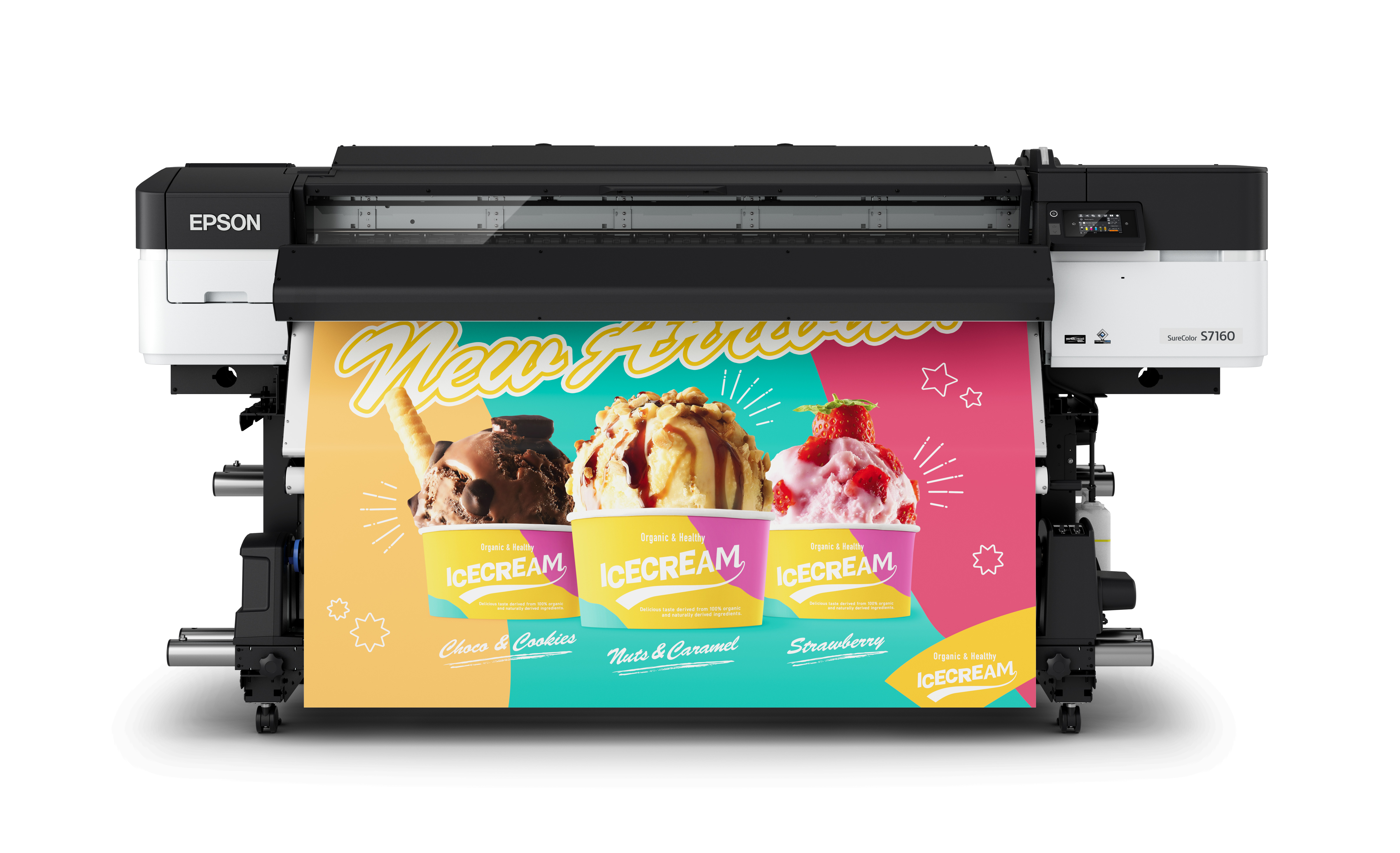

EPSON SureColor S7160

Superior image quality – PrecisionCore MicroTFP printhead with 4-colour UltraChrome GS3 ink and VSDT.
Outstanding performance – Produces billboard-quality prints at speeds up to 38.7 m²/hr.
Consistent output – Integrated carriage temperature sensor and nozzle verification technology for consistent colour
Versatile media support – Delivers accurate results on a wide range of media, including vinyl, canvas, film, wallpaper, and other roll media up to 1,626 mm wide.
User-friendly operation – Single operator media loading system, easily replaceable 800 ml ink packs and a 4.3” touch screen ensure a streamlined workflow.
Low maintenance – Hassle-free automatic printhead cleaning system and a protective printhead guard to help prevent media crashes.
Seamless integration – Supplied with Epson Edge Print Pro RIP software and compatible with Epson Cloud Solution PORT for advanced job management, cost tracking and support.
Reduced running cost – Energy-efficient design and cost-effective ink packs help lower print costs. Includes a comprehensive warranty, extendable up to five years with CoverPlus, reducing total cost of ownership.

The SureColor S7160 is designed to produce durable signage with exceptional image quality, productivity, ease of use and reliability at a minimal cost. It is ideal for ad-hoc workflow environments with low-to-medium production volumes, and supports a wide range of applications, including indoor POS & outdoor signage, backlit displays, vehicle wraps, and more.

‍

Fast, efficient and reliable production

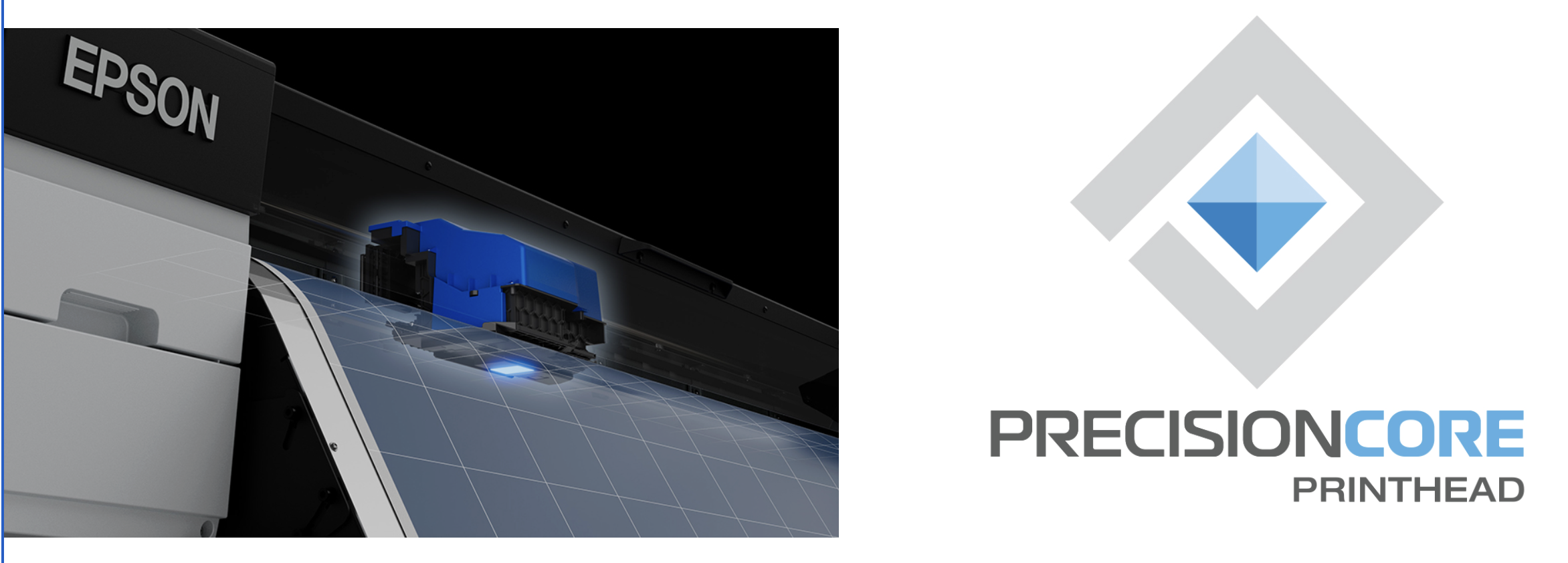

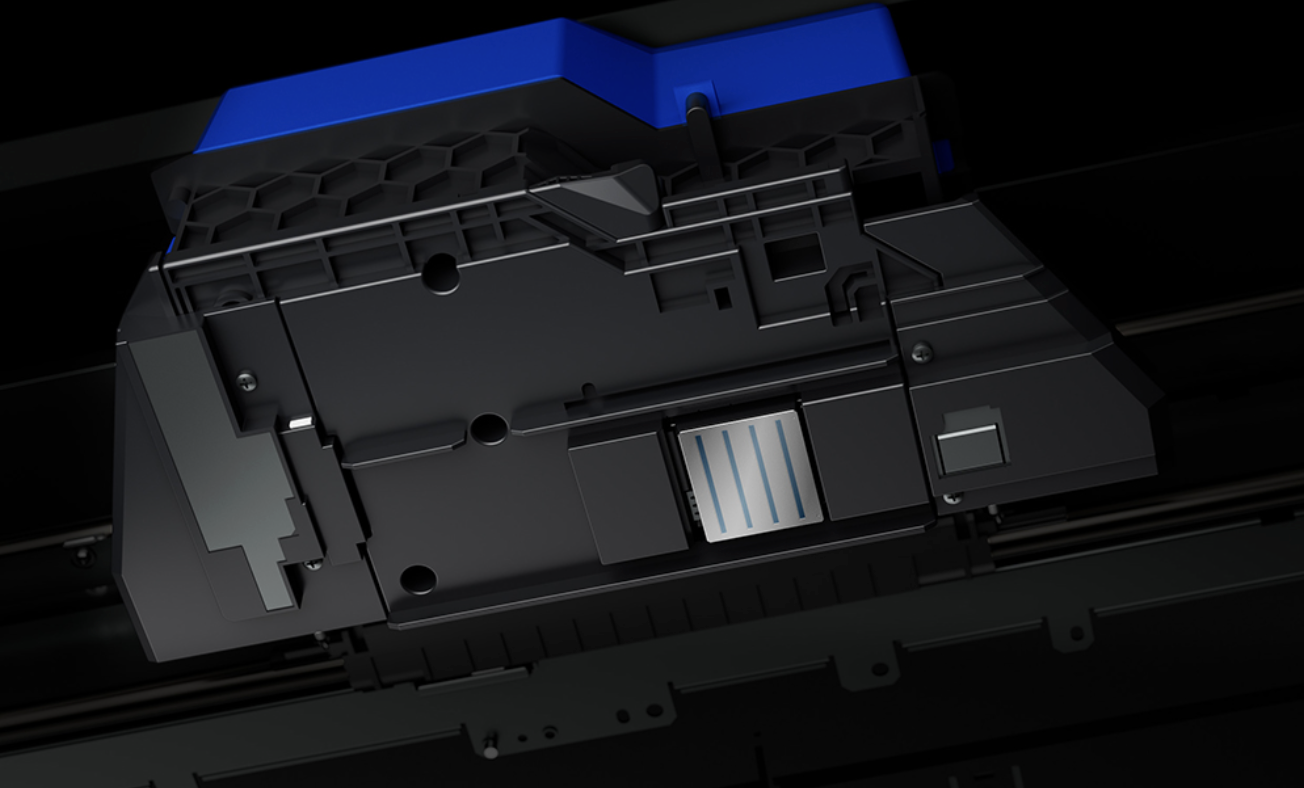

The SC-S7160 incorporates advanced technologies to enhance both user experience and print quality. These include Epson's 1.33-inch-wide PrecisionCore Micro TFP printhead, which enables faster printing¹ and wider print width in a single pass, increasing the number of nozzles from 360 to 400.

‍

The SC-S7160 features a carriage temperature sensor that quickly detects and compensates for temperature differences, helping minimise colour variations during long print runs. This ensures colour consistency from start to finish by adjusting for temperature shifts in ink and nozzle surface caused by the platen heater.

‍

Superior quality & precision

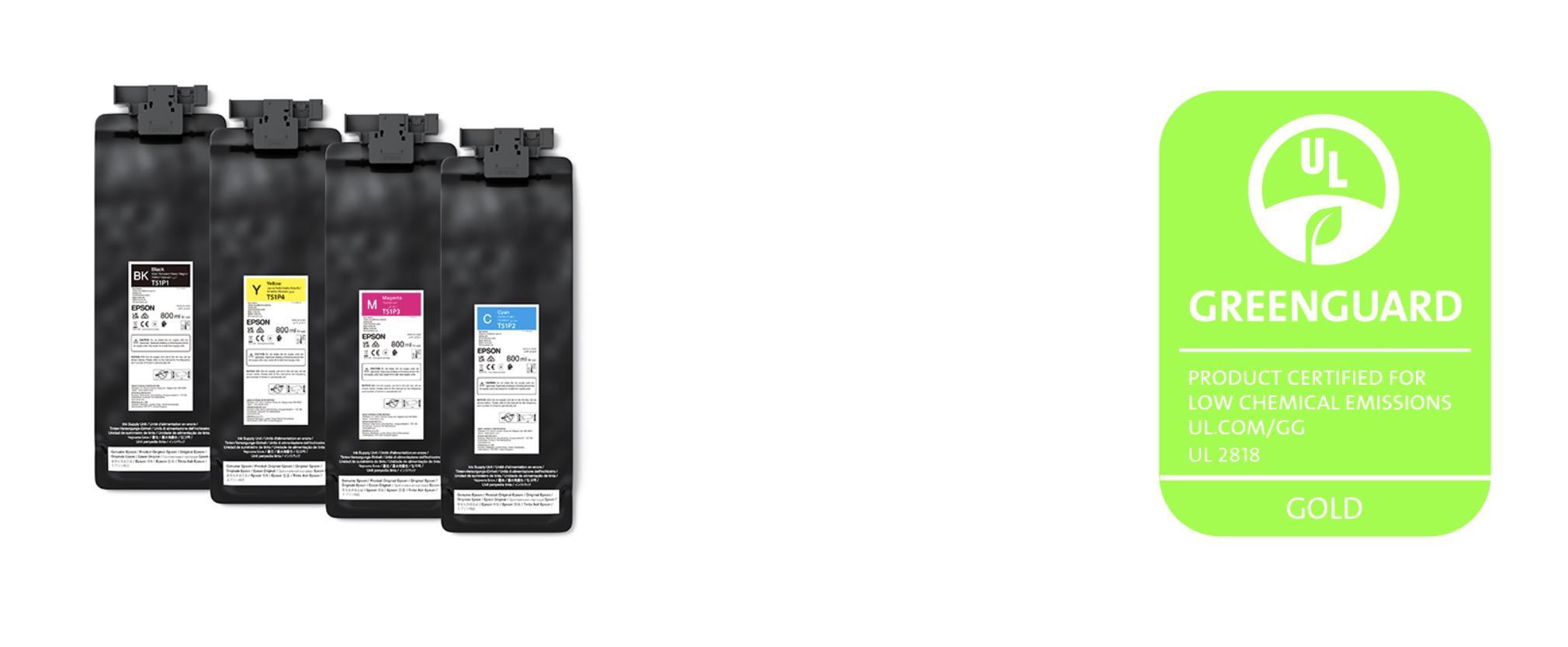

The SureColor S7160 utilises a 4-colour UltraChrome GS3 800 ml ink pouch system, enabling durable, vibrant and accurate prints on a variety of media types, including vinyl, canvas, film, wallpaper, and other roll media up to 1,625 mm wide.

The transition from 700 ml cartridges to 800 ml ink bags reduces the frequency of ink replacement, while being up to 84% lighter and generating up to 91% less waste per bag, aligning with Epson's sustainability goals. UltraChrome GS3 ink is GREENGUARD Gold certified, ensuring low chemical emissions and suitability for indoor environments.

‍

Built on a market-proven platform, the printer includes robust chassis with an advanced auto tension control system and a reinforced media feed roller for high-precision media feeding. These enhancements deliver more consistent output, simplify offline processing, and make the printer suitable for tiling and other precision applications.

Streamlined operation & maintenance

The SC-S7160 includes an internal air circulation system with filters that capture ink mist. The printhead guard helps prevent media crashes while a new automatic head cleaning system ensures reliable performance with minimal intervention.

Its 4.3-inch touchscreen interface allow easy access to system settings and ink level monitoring. Built-in LED lighting improves visibility during operation, helping users monitor print status at a glance.

To further optimise productivity and profitability, the SureColor S7160 integrates with Epson's advanced management tools, including Epson Edge Print Pro RIP software and Epson Cloud Solution PORT, which provides comprehensive reporting, tracking, and cost analysis to help businesses streamline operations.
