DS-77 iQ Folder Inserter

Quicker, Smarter, and Easier-to-Use

All Products Back

Product Specification Brochure

Product Description

Keep pace with today’s mailroom demands!

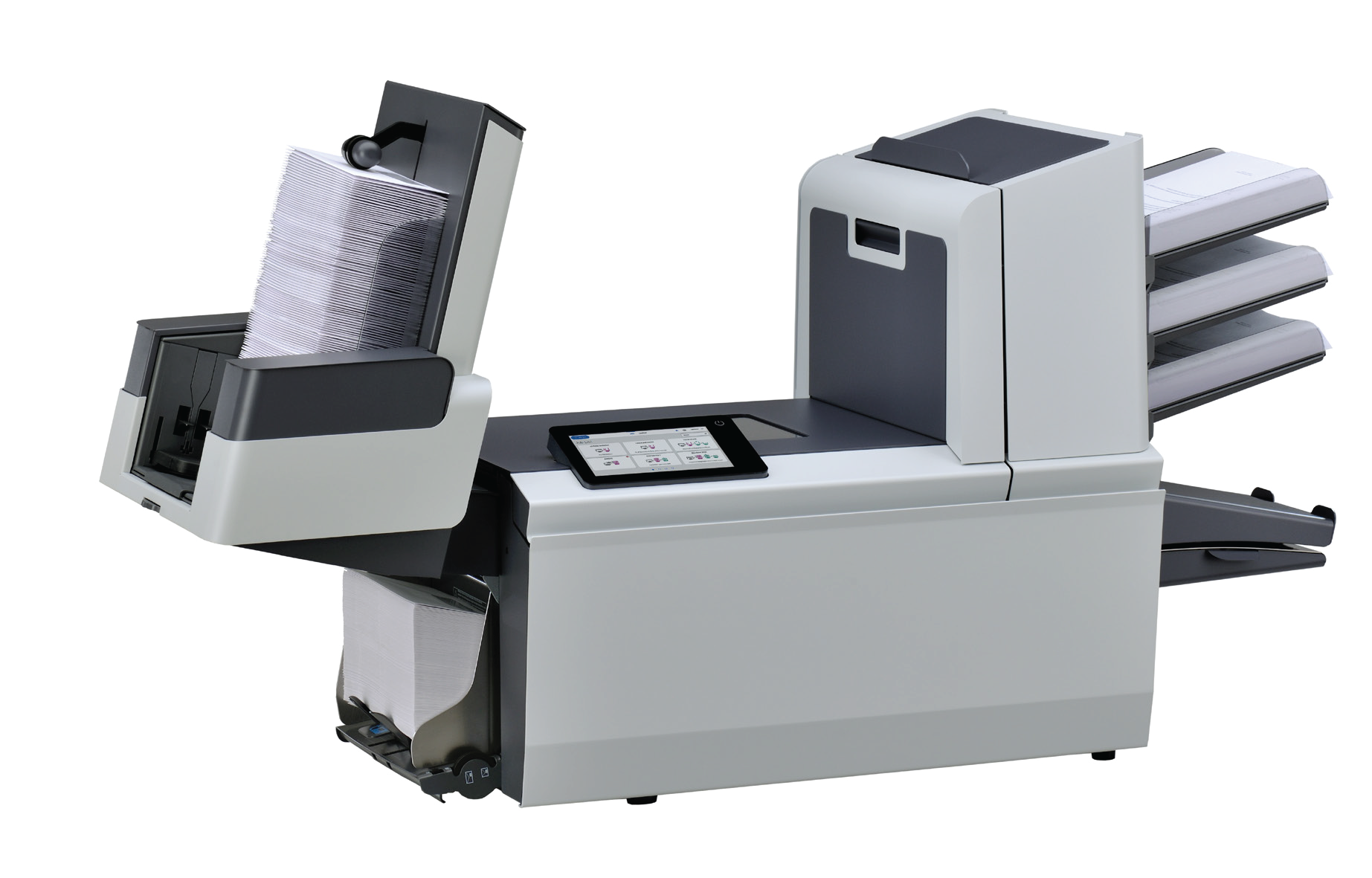

The DS-77 iQ combines unparalleled ease of use with the latest technology. From its intelligent features such as CIS scanning technology, reading and sorting capabilities to its newly-designed compact footprint, the DS-77 iQ takes folding and inserting mail to the next level.

Process a wide variety of mail from transactional documents such as invoices and monthly statements to marketing applications in different shapes and sizes. The intuitive color touch screen prompts the operator through each step of the process. This scalable system is extraordinarily quiet and designed to fit perfectly into any work environment. With its wireless and LAN embedded capabilities, the DS-77 iQ connects to your network to enable remote diagnostics and assistance to provide help when needed.

‍

Enquire Now

Features & Specifications

Processing speed Up to 3,800/hour

7-inch color touch screen Standard

Automatic settings Standard

Job memory 50

Feeders Up to 3

Hand feeding Standard

Multi-sheet feeding Standard

Cascade from feeders Standard

Document feeder capacity 325 sheets (20 lb.)

Envelope feeder capacity 325

Folding capacity (one set, single fold) Standard (Up to 10 sheets 20 lb.)

Automatic double detection Standard

Accumulate before folding Standard

High capacity vertical stacker Up to 500 envelopes

Tip-to-tip sealing Standard

LAN embedded Standard

Wireless USB key Standard

Noise level 66 Db

Fold types Letter, z-fold, single, double, parallel, no fold

Document height 3.5" - 14"

Document width 5.1" - 9.1"

Envelope length 3.5" - 6.35"

Envelope width 6.3" - 9.7"

Maximum insert thickness 1 mm

Maximum set thickness 2.5 mm

‍

OPTIONS

MaxiFeeder capacity 1,200 sheets (20 lb.)/325 BRE

High capacity feeder capacity 725 sheets (20 lb.)

Side exit Up to 400 envelopes

Mailing system interface Available

Barcode Reader (BCR) for 1D and 2D barcodes Available

Optical Mark Recognition (OMR) Available

Document Automation Software (Impress) Available

Document Integrity Software (docsecure) Available

Mail Usage Reporting System (Neostats) Available

Remote Assistance Available

Remote Diagnostics Available

‍

System Dimensions

DS-77 iQ (3 feeders with catch tray) 50" × 20" × 29"

Weight 175 lbs.

‍

Business Impact

Revenue Growth

Accelerates document processing time by enabling staff to focus on more revenue-driving work.

Customer Engagement

Increases customer satisfaction by ensuring that communications are personalized, accurate and prepared for the correct recipient.

Risk Mitigation

Ensures sensitive information is not compromised by tracking documents at every step with a closed-loop verification system.

Expense Control

Provides insight into mail spend to make smarter business decisions.

‍

Gain visibility and integrity!

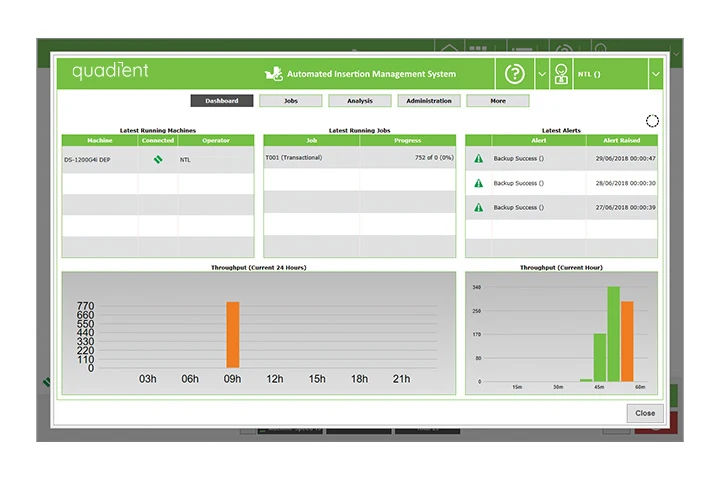

Smartech’s mail management software adds an extra layer of tracking and monitoring. The DS-77 iQ is compatible with docsecure by SMARTECH, the only fully cloud-based, closed-loop solution that tracks document integrity at every step and generates comprehensive reports to prove compliance. It offers the highest level of mail piece integrity by tracking and recording the entire folding and inserting process, from start to finish. Further enhance your DS-77 iQ with Neostats. Monitor your mail usage and reconcile postage expenses with this powerful reporting tool. Track spend, analyze mailing activity and share metrics across your organization.

‍

Complete diverse jobs in less time

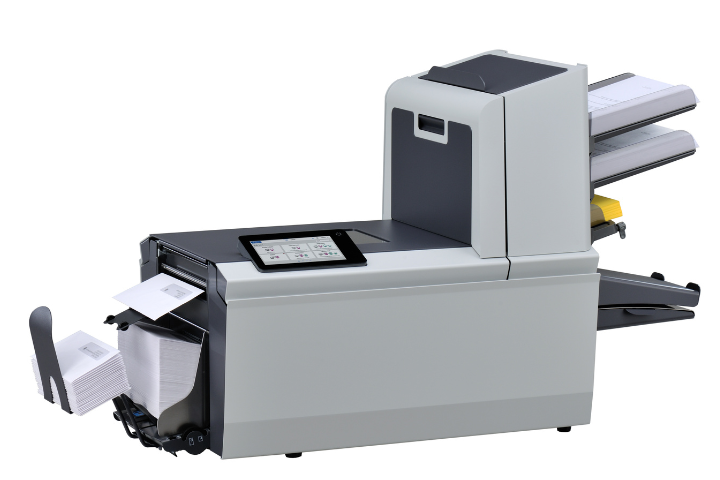

The exclusive FlexFeed® tray enables you to process a wide variety of document types. Combine documents of different sizes simply by loading them into each feeder. The unique semi-automatic envelope separation mechanism allows you to marry transactional mail like invoices and statements with direct marketing materials. The FlexFeed tray makes switching applications easy, no need to change or buy extra feeders to accommodate different sizes.

MAXIMIZE PRODUCTIVITY WITH THE MAXIFEEDER TRAY

Use the MaxiFeeder for heavier stock items like booklets, glossy material or up to 325 BRE’s. Or load up to 1,200 sheets for optimal productivity.

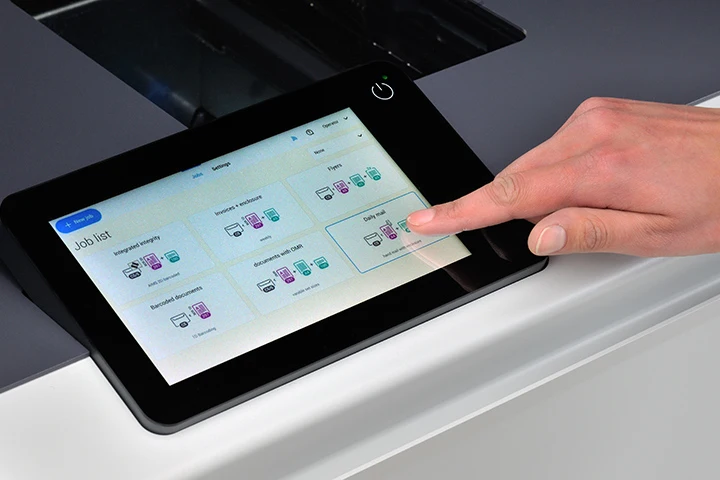

A state-of-the-art graphical user interface

The intuitive, high-resolution wide touch screen has a wizard-based, user-friendly interface, making it easy for anyone to create select and run their folding and inserting jobs.

Simply load documents and envelopes and press the start button. The DS-77 iQ will automatically measure the length of all loaded documents and envelopes and adjust all settings for seamless processing.

‍
