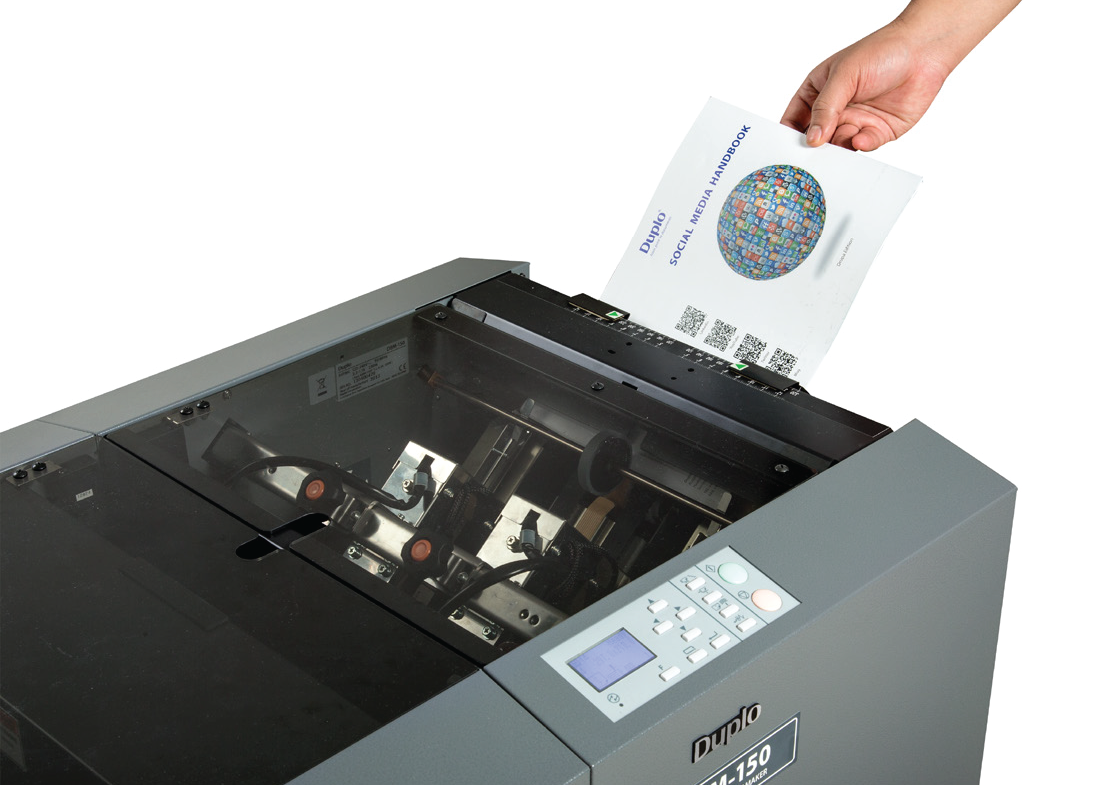

Duplo DBM-150 Hand Fed

The world's smallest fully-automatic booklet maker and trimmer

All Products Back

Product Specification Brochure

Product Description

Equiped with Duplo's superior engineering within a compact footprint. It can produce finish documents either sheet by sheet or set by set. The DBM-150/T Bookletmaker & Trimmer is designed to meet the challenges of today's offset and digital printer. Duplo has bundled the features of the big bookletmakers into this uniquely compact system.

Enquire Now

Features & Specifications

Duplo DBM 150: Ideal for small to mid-sized print shops and offices.

Booklet Making: Efficiently creates professional booklets.
Sheet Capacity: Handles various paper sizes and types.
Automatic Folding: Precise and automated paper folding.
Collating: Ensures correct page order for booklets.
Stapling: Secures booklet spines for a polished finish.
Adjustable Settings: Customizable for specific needs.
Touchscreen Interface: User-friendly operation.
High Production Speed: Suitable for medium-volume jobs.
Compact Design: Saves office or shop space.
Integration: Can integrate with other printing equipment.
Optional Modules: Enhance functionality as needed.

‍

Technical Specification

Booklet size

Saddle stapling and folding: Length 210 to 460 mm; Width 120 to 320 mm

Standard size: A5SEF, A4 SEF, A4 LEF,A3 SEF, A3SR SEF, B5 SEF, B4 SEF, LGRSEF, LGL SEF, LTR SEF, LTR LEF, STMT SEF

Paper type

Fine quality: 64 to 127.9gsm

Art/Coated: 104.7 to 127.9gsm

Cover: Fine quality, Art/Coated within300gsm

Stapling thickness

Fine Quality: within 2.5mm (Maximum of 25 sheets regardless of paperweight)

Max processing speed: 2400 sets/hour

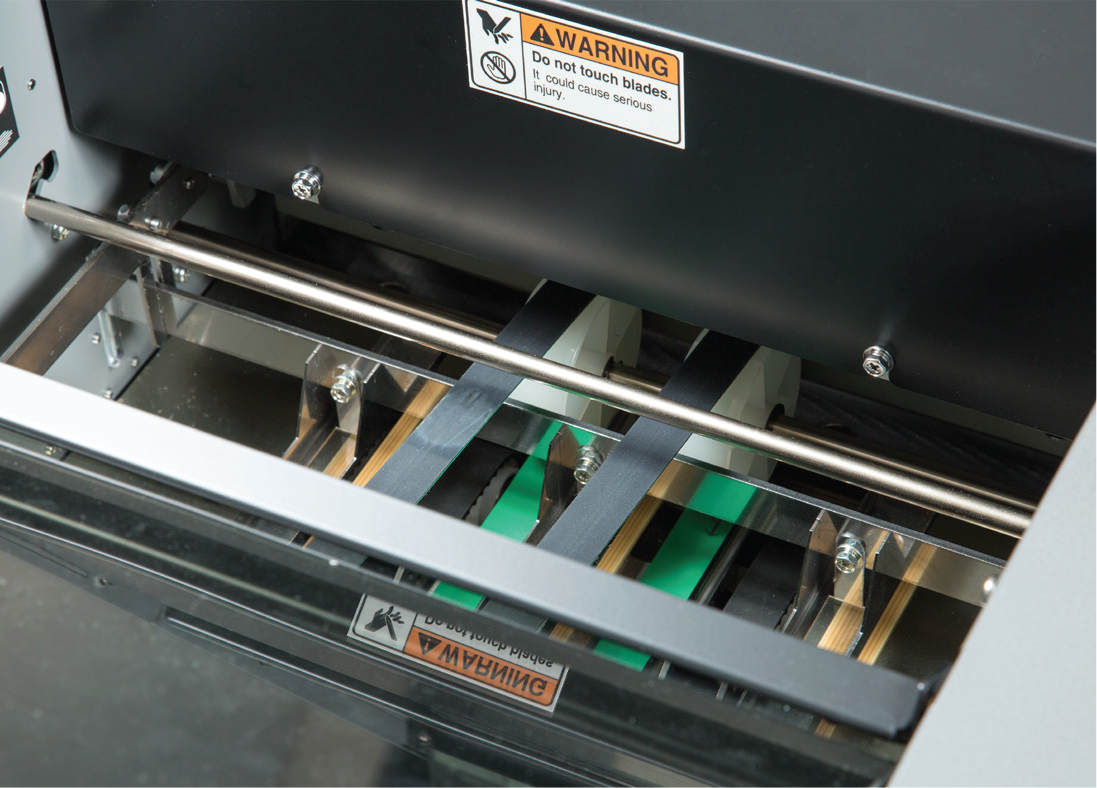

Number of sheets that can be trimmed: 4 to 50 sheets

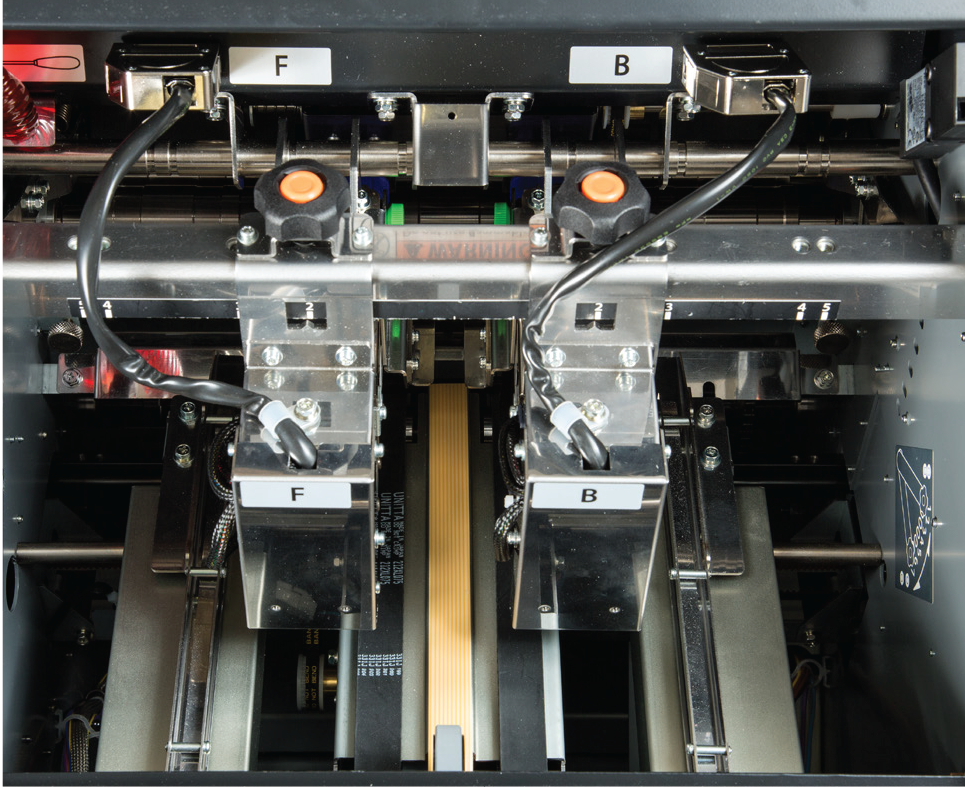

Stapler: ISABERG RAPID R952

‍

Applications

This DBM-150 can finish wide rang of applications. It can handle sheet sizes from 120mm x 210mm to 320mm x 460mm and paper weights from 64gsm to

300gsm. The small booklet kit is standard in the DBM-150.

‍
