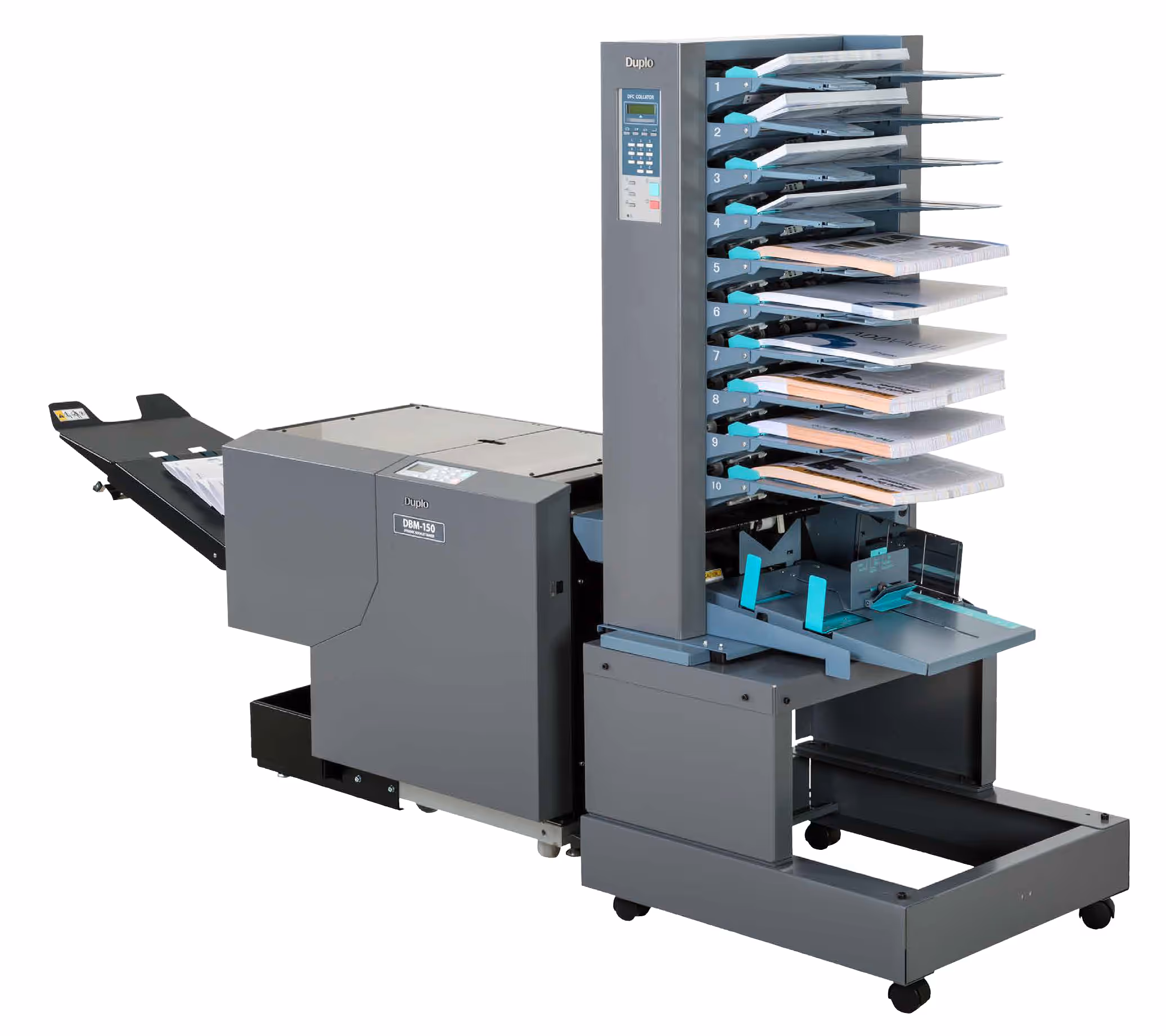

Compact footprint
The 150 Bookletmaker and Trimmer is13% smaller than its predecessor the120 system. The small footprint of this booklet system makes it easy to install in places with limited space. The 150FrBooklet System is an ideal companion forlow to mid volume users such as Quick printers, Copy shops and In-plants such asSchools, Universities, Churches to name a few. Despite its small size, this system can finish a wide range of applications.
Media
The 150Fr Booklet System can finish a wide range of applications. It can handle sheet sizes from 148mm x 210mm to320mm x 450mm and paper weights from64gsm to 128gsm.
Reliable paper handling
The 3 friction feed wheels ensure maximum contact with the paper for flawless and consistent delivery. It can feed bond, NCR, light card, folded sheets and even certain coated stocks. The separator pressure and tray pressure on each bin can be individually controlled.
User-friendly
The 150 bookletmaker and trimmer features a state of the art control panel which is very simple and easy to use. The operator can set up a job in four simple steps. Overall the 150C Booklet System is an extremely user-friendly bookletmaker which requires very little training.
Automatic set-up
The booklet size on the 150Fr BookletSystem can be changed without any tools and takes only a few seconds.Simply select the required size and the guides and trimming position adjust automatically. If required, the operator can adjust the stapling position manually.
Finishing modes:
The 150Fr Booklet System can finish side stapling, corner stapling and fold saddle stapling applications. It is also possible to produce fold only applications.
Straight or Offset Collating
The collating tray on the DFC-100 collator has a 78mm stacking capacity and can be run in offset mode or straight collate mode depending on the requirements of the job. The machine automatically stops when the catch tray is full so the machine can be left to run without continuous supervision.
